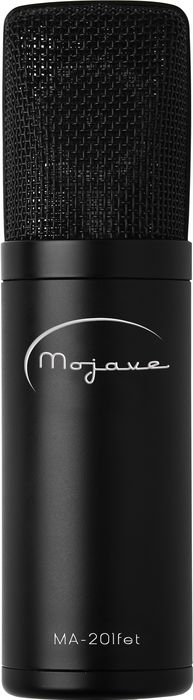

MA-201 FET Large Diaphragm Condenser Microphone

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

Superb performance and warm, full-bodied sound from the bench of mic design guru, David Royer.

The MA-201 fet is a large diaphragm, phantom-powered, solid-state condenser microphone with a fixed cardioid pattern. With its roots in a lineage of microphone designs by David Royer, one of an elite group of microphone designers who know that music and sound are inseparable from electronic design, the MA-201 FET
Microphone offers warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.

Using a 3-micron gold-sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-201 FET performs at a level reminiscent of some of the best loved classic condenser microphones. Each Mojave MA-201 FET microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.

Recommended applications:

Vocals
Voice Over and Broadcast
High SPL sources, such as Kick Drums and Bass Guitar Amps
Electric Guitar
Piano
Drum Overheads, Drum Rooms
Acoustic Instruments

Features

  • Hand-selected 3-micron 1" capsule
  • Jensen audio transformer
  • Military-grade FET
  • Custom designed low-noise resistors
  • Ultra clean signal path

If you're looking for performance that far exceeds price, look no farther than the MA-201 FET.

Specs

MA-201 FET Large Diaphragm Condenser Microphone Specifications:

  • Transducer Type: Externally polarized pressure gradient capacitor
  • Diaphram: 1-inch diameter, gold sputtered
  • Diaphram Thinkness: 3-micron
  • Polar Pattern: Cardioid
  • Frequency Response: 20 Hz-20kHz, + 3dB
  • Sensitivity: -39 dB re. 1V/pa
  • Maximum Spl: 125 dB
  • Distortion: <1% @120dB SPL, <3% @134dB SPL
    Self Noise: 14dB nominal, not to exceed 16dB (A weighted)
  • Impedance: 550 ohms, transformer balanced (Jensen)
  • Powering: 48VDC phantom power; current .68mA.
  • Dimensions And Weight:
  • Carrying case with microphone, shock mount: 10" x 9" x 4.5", 4 lbs.
  • Microphone: 7 5/8" x 2", 1 lb.
