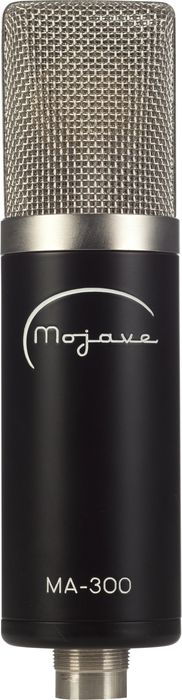

MA-300 Large-Diaphragm Multi-Pattern Tube Condenser Mic

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

Performs at a level reminiscent of some of the best-loved classic condenser microphones.

The MA-300 is a multi-pattern large diaphragm, vacuum tube condenser microphone. Based upon the widely accepted MA-200 designed by David Royer, the MA-300 adds a continuously variable pickup pattern selector, 15dB pad and a switchable bass roll-off. The MA-300 gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.

Utilizing hand-selected, double diaphragm 3-micron capsules, high-quality Jensen audio transformers and military-grade JAN 5840 vacuum tubes, the MA-300 performs at a level reminiscent of some of the best loved classic condenser microphones. The MA-300 power supply can be set for 115V and 230V, 50 or 60 Hz, through an internal switch (100V is also available). Each MA-300 microphone, power supply and cable set is burned in for 24 hours, carefully tested and evaluated, then packaged in its protective case-within-a-case.

Features

  • Remotely controlled, continuously variable polar pattern selector
  • Switchable 15dB pad
  • Switchable Bass Roll-off
  • Hand-selected 3-micron double diaphragm capsule
  • Jensen audio transformer
  • Military grade JAN 5840 vacuum tube
  • Internal switchable power supply voltage
  • Ultra clean signal path
  • Includes an aluminum case, AC power supply and cable, 16-foot microphone cable with 5-pin male and female connectors, and shock mount
  • Recommended applications:
  • Use anywhere you would use an expensive, large diaphragm tube microphone.
  • Vocals
  • Voice Over and Broadcast
  • Acoustic Instruments
  • Piano
  • Drum Overheads, Drum Rooms
  • Orchestral Recording
  • Choral Recording

Order a mic that will delivers years of superb performance.

Specs

MA-300 Large-Diaphragm Multi-Pattern Tube Condenser Mic Specifications:

  • Transducer type: externally polarized, pressure gradient capacitor - double diaphragm.
  • Diaphragm: 1-inch diameter, gold sputtered
  • Diaphragm thickness : 3-microns
  • Polar response: continuously variable from omnidirectional to figure-eight.
  • Frequency response: 20 Hz to 20 KHZ, ±3 dB at "flat" setting of bass cut switch. Bass cut switch provides 6 dB per octave attenuation below 100 hertz in "cut" setting
  • Sensitivity: -37dB re 1v/pa
  • Maximum SPL: 120 dB with pad off, 135 dB with pad on.
  • Distortion: < 1% @ 117 dB SPL, < 3% @ 125 dB SPL with pad off, < 1% @ 132 dB SPL, < 3% @ 140 dB SPL with pad on
  • Self-noise: 14dB nominal, not to exceed 16dB (a weighted)
  • Pad: 15 dB
  • Bass cut: 6 dB per octave below 100 hertz.
  • Dimensions and weight: carrying case with microphone, power supply, shock mount and cables: 13 lb.Microphone: 7 5/8" x 2", 1 lb.
