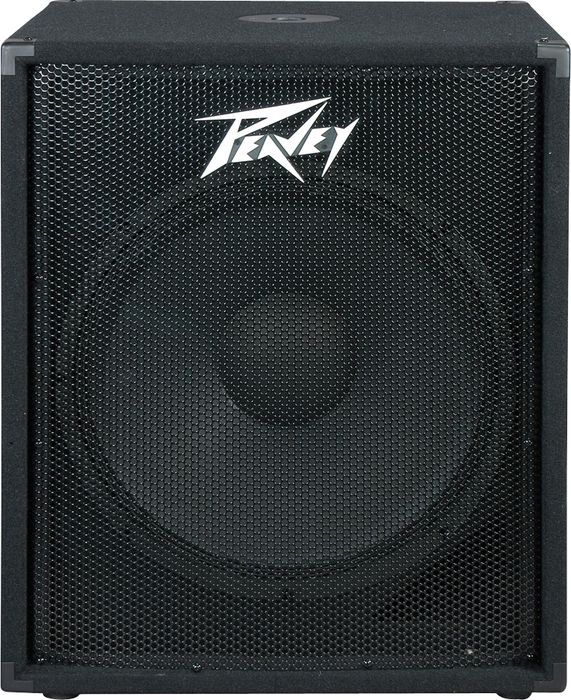

PV 118D Powered Subwoofer

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

300 Watts drive this heavy-duty 18" woofer for floor-vibrating bottom.

Designed to complement the PV family of enclosures, the PV 118D powered subwoofer features a power section that provides 300W for the woofer with Peavey-exclusive DDT compression. The PV118D has a 18" heavy-duty woofer, as well as a balanced XLR input jack, balanced XLR output with switchable thru/high-pass filter, speaker level input, and volume level control. There is also a ground level switch just in case there is ground-loop hum between connected equipment.

Features

  • DDT compression
  • Crossover frequency: 120 Hz
  • Bass contour circuit
  • 4th order Linkwitz-Riley crossover
  • 18" heavy duty woofer
  • Woofer Servo for reduced woofer distortion
  • Peak SPL up to 119 dB with music
  • Female XLR mic- or line-level balanced input
  • Male XLR thru, switchable either high-pass or thru
  • One 1/4" phone jacks for speaker-in capability
  • Bi-amplified Class D powered system with 300W total power
  • MDF enclosure with black carpet finish
Specs

PV 118D Powered Subwoofer Specifications:

  • Frequency range: (-10dB), half space) 38Hz to 120Hz
  • Frequency response: (+/- 3dB anechoic) 46Hz to 90Hz
  • Sensitivity (1W 1m): 95dB
  • Maximum SPL: 119dB
  • Transducer Complement: 18" Heavy-duty woofer with 3" voice coil and 65oz. magnet
  • Box tuning frequency: Low Frequency Section 46Hz
  • Crossover Frequency: 120Hz
  • Nominal Impedance (Z): 8Ohms
  • Input connections: Line-level XLR jack input, speaker level 1/4" phone jack input
  • Output connections: Line-level XLR jack outpu, switchable to either Thru mode, or High-Pass Filter mode
  • Dimensions (HxWxD): 27" x 21.88" x 19.63" (686mm x 556mm x 499mm)
  • Weight: 76lb. (34.5kg)
