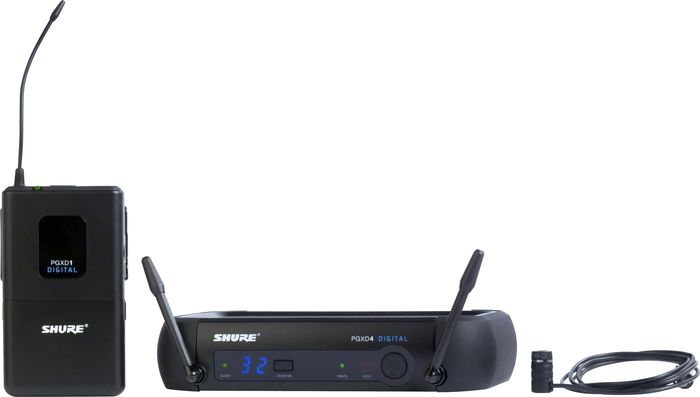

PGXD14/85 Digital Wireless System with WL185 Lavalier Mic

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

A condenser lavalier mic with bodypack transmitter and receiver for 200' of wireless freedom.

This PGXD 14/85 Digital Wireless System includes a PGXD1 Bodypack Transmitter with WL185 Lavalier Microphone and a PGXD4 Wireless Receiver. The PGX Digital Vocal Wireless System adds the clarity of 2Show More
Specs

PGXD14/85 Digital Wireless System with WL185 Lavalier Mic Specifications:

PGXD1 transmitter
  • Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
  • Gain adjustment range: 26dB
  • Input impedance: 1MÎ
  • RF Output Level: 10 mW maximum (dependent on applicable country regulations)
  • Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25"x 2.50" x 0.75")
  • Weight: 128g (4.5oz.) without batteries
  • Housing: Molded polycarbonate case
  • Power requirements:
  • Battery Life: Up to 10 hours
PGXD4 receiver
  • Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
  • Weight: 289g (10.2oz.)
  • Housing: ABS
  • Audio Output Level (ref. ±38kHz deviation, 1kHz tone): XLR connector (into 3000Î load): -2.5dBV 1/4" connector (into 10000Î load): +10 dBV
  • Impedance:
  • XLR: 50Î
  • 1/4": 50Î
  • Sensitivity: -102 dBm @ 10-5 BER
  • Image rejection: > 70dB, typical
  • XLR output:
  • Impedance balanced Pin 1: Ground (cable shield)
  • Pin 2: Audio
  • Pin 3: No Audio
  • Audio LED:
  • Red: 2dB below clip
  • Amber: 12dB below clip
  • Green: 50dB below clip
  • Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
  • Pin Assignments: XLR: 1 = ground, 2 = hot, 3 = cold 6.35mm (1/4") TRS: Tip = audio, Ring = no audio, Sleeve = ground
WL185 Lavalier Microphone
  • Type: Condenser (electret bias)
  • Frequency Response: 50 to 17,000Hz
  • Output Impedance: 1800Î
  • Sensitivity (1 Pa = 94 dB SPL): -45.5 dBV/Pa
  • Maximum Sound Pressure Level: 130.5 dB SPL
  • Output Noise (A-weighted): WL185: 28.0 dB SPL
  • Dynamic Range: 102.5dB
  • Polarity: Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1
  • Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter
