CC-222SL MKII Slot-Loaded CDRW Cassette Deck

Play Video

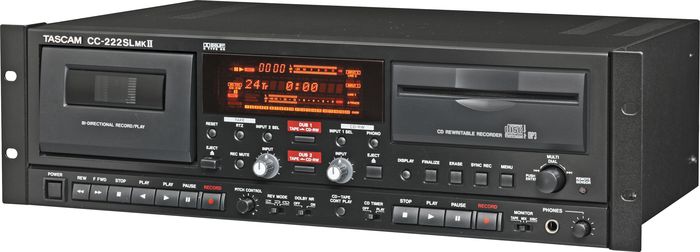

CC-222SL MKII Slot-Loaded CDRW Cassette Deck

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

This combination CD/Cassette recorder has been enhanced with plenty of professional options.

TASCAM's most popular combination CD and Cassette recorder, the CC-222SL MKII, has been upgraded to support a more robust slot-loading CD transport with adjustable pitch control. This enhanced CC-222SL MKII includes a RIAA phono input which allows direct recording from a turntable.

Further solidifying the source-device's reputation for flexibility is its ability to be operated as two individual recorders; or, record one source to both recorders consecutively. It features digital I/O (coaxial and optical) for the CD and a set of RCA (unbalanced) analog ins and outs. The user can configure the player's ins and outs as two individual components or share the same I/O for both CD and cassette.

The CD recorder includes popular features such as Auto Track Increment, MP3 playback, Power on Play, Fade In and Out, Manual Track Increment, and a variety of playback modes. Support for dual media has made the TASCAM CC-222SL series a mainstay in houses of worship, schools, theaters and other installations.

Features

CD-RW Recorder

Slot-loading transport
Acceptable discs: CD-R, CD-RW, CD-R-DA, CD-RW-DA
High Speed Recording Media is applicable
MP3 playback
24-bit AD/DA converter
Digital input volume control
Sampling rate converter (32kHz/ 44.1kHz / 48kHz)
Unbalanced analog I/O (RCA)
Coaxial and Optical digital I/O (CD)
Fade in and out
Auto Track Increment (via SPDIF or Audio Level)
Erase or Un-finalize of CD-RW discs
Multiple playback modes
Pitch control (±12.5%, CD-DA only)
Key control (±6 half tone, CD-DA only)

Cassette

+/- 10% Pitch Control
Return to Zero Function
Dolby B Noise Reduction
Auto Reverse

General

RIAA Phono Input for recording onto CD-R/RW discs or cassette tape
Independent output for CD and Cassette (selectable)
Continuous play between cassette & CD
Cassette to CD-R/RW dubbing and vice versa
Headphone output w/Level Control
RC-222 wireless remote Included
Dedicated analog input level controls
Power-on play

CC-222SL MKII Slot-Loaded CDRW Cassette Deck Specifications:

CD Recorder Section

Recordable discs: CD-R, CD-R-DA, CD-RW, CD-RW-DA (High-speed CD-RW is supported)
Quantization bit depth: 16-bit linear
Sampling frequency: 44.1kHz
Frequency Response: 20Hz20kHz, ±.8dB (playback), ±1dB recording)
S/N ratio: 92dB (playback), 88dB (recording)
Dynamic range: 92dB (playback), 88dB (recording)
Total harmonic distortion: .006% (playback), .01%(recording)
Channel separation: 80dB (playback:1kHz), 75dB (recording: 1kHz)
Wow and flutter: unmeasurable (<.001%)
Digital input Fs: 32kHz to 48kHz (SRC ON), 44.1kHz (SRC off)
Digital input: Coaxial RCA pin jack, Optical TOSLINK
Digital output: Coaxial RCA pin jack, Optical TOSLINK
Line inputs 1: Unbalanced input: RCA pin
Level: -10dBV (Full Scale -16dB)
Maximum input level: +6dBV
Input impedence: 50kOhms ±10% (unbalanced)
Line outputs 1:
Unbalanced input: RCA pin
Level: -10dBV (Full Scale -16dB)
Maximum input level: +6dBV ±2dB
Input impedence: 600kOhms ±10% (unbalanced)

Cassette Recorder Section

Number of channels: 4-track, 2 channel stereo
Heads: Record/Playback x 1 (rotary reverse), erase x 1
Type of tapes: Compact Cassette C-60, C-90 Type 1 (normal), Type II (high position)-recording and playback; Type IV (metal)-playback only
Tape speed: 4.76cm/ 1-7/8 ips)
Motor: DC servo motor x 1
Wow and flutter: <.25% (W.RMS)
Frequency response (overall): 50Hz-12.5kHz ±3dB (high position), 50Hz-10kHz ±3dB (normal)
Signal-to-noise ratio (overall): 46dB (Dolby NR off), 52 (Dolby NR on)
Fast winding time: Approx. 160 seconds (C-60)
Line inputs 2: Unbalanced RCA, Normal input level .28V (-11 dBY), Input impedance 50kOhms
Line outputs 2: Unbalanced RCA, Normal output level .46V (-6.7dBV), Output impedance 1kOhms

Phono Input and headphones

RIAA Phono Input:

Unbalanced RCA (with ground)
Cartridge Type: MM (moving magnet)
Input signal level: 5.6 mV
Input impedance: 50kOhms
S/N ratio: 60dB (6.3kOhms)

Phones (headphone output):

6mm (1/4") stereo
Output level 10mW + mW (into 32 ohms)

General Specifications

Power: 120 VAC, 60Hz
Power consumption: 33W
Dimensions: 17.13"W x 5.4"H x 11.6"D
Weight: 15.2lb.
