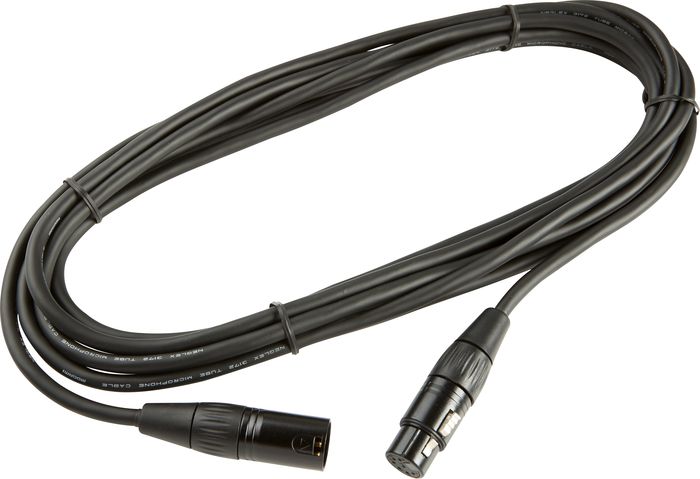

7 Pin Tube Mic Power Supply Cable

7 Pin Tube Mic Power Supply Cable Specifications:

• No. of Conductor: 6
• MIC. OUTPUT
• Conductor: Details: 2 … (30/0.08 OFC):
• Size(mm sqœ): 0.15mm sqœ (#26AWG)
• Insulation: Ov. Dia.(mm): 1.0 (0.039")
• Material: XLPE
• Colors: Orange / White
• BIAS
• Conductor: Details: 2 … (75/0.04 Cu-Sn)
• Size(mm sqœ): 0.094mm sqœ (#28AWG)
• Insulation: Ov. Dia.(mm): 1.0 (0.039")
• Material: XLPE
• Colors: Red / Purple
• HEATER CIRCUIT
• Conductor: Details: 2 … (80/0.08A)
• Size(mm sqœ): 0.40mm sqœ (#22AWG)
• Insulation: Ov. Dia.(mm): 1.6 (0.063")
• Material: PVC
• Colors: Green / Blue
• Served Shield: Double Served Shield Approx. 112/0.10A and Approx. 133/0.10A
• Binder Thickness: 0.025mm (0.00098")
• Binder Material: Paper Tape
• Ov. Jacket Ov. Dia.(mm): 6.5 (0.256")
• Ov. Jacket Material: Flexible PVC
• Ov. Jacket Color: Black
• Roll Size: 100m (328Ft)
• Weight per 100m Roll: 6.3kg
• ELECTRICAL & MECHANICAL CHARACTERISTICS:
• Part No.: W3172
• DC Resistance at 20 deg C
• Inner Conductor MIC SIGNAL: 0.13W/m(0.040W/Ft)
• Inner Conductor BIAS CIRCUIT: 0.23W/m(0.070W/Ft)
• Inner Conductor HEATER CIRCUIT: 0.046W/m(0.014W/Ft)
• Shield: 0.011W/m(0.0034W/Ft)
• Capacitance at 1kHz, 20 deg C: Shield-Conductor: 230pF/m(70pF/Ft) 100pF/m(30pF/Ft) 93pF/m(28pF/Ft); between neighbor conductors: TWISTED PAIR 56pF/m(17pF/Ft): 46pF/m(14pF/Ft) 137pF/m(42pF/Ft)
• Inductance: TWISTED PAIR 0.4H/m(0.12H/Ft)
• Electrostatic Noise*: TWISTED PAIR 1mV Max.
• Electromagnetic Noise at 10kHz*: TWISTED PAIR 0.01mV Max.
• Microphonics*: TWISTED PAIR 10mV Max.
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 100000 MW … m Min. at DC 125V, 20 deg C
• Flex Life*: 13,000 cycles
• Tensile Strength: 588N
• Emigration: Non-emigrant to ABS resin
• Applicable Temperature: -20 deg C +70 deg C(-4 deg F +158 deg F)
• * Using standard testing methods of Mogami Wire & Cable Corp.
