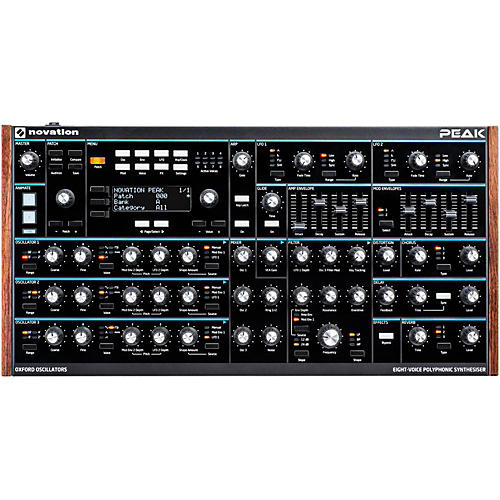

Novation Peak 8-Voice Desktop Synth

Name: Novation Peak 8-Voice Desktop Synth
Brand: Novation
SKU: J52520000000000
Price: 1599.99 USD
Availability: InStock
Rating: 5 (1 reviews)

(1) Q&A SKU #J52520000000000

$1,59999

6-Month Special Financing

Limited time Learn more

Special Financing

Applying is fast and easy!
Status and credit amount on validation!
Instant decisions so you can make your purchase now!

*Qualifying purchase (excluding gift certificates) must be one receipt. 6 month special financing excludes open box gear and cannot be combined with promotional coupons or manual discounts. No interest will be charged on the promo purchase if you pay the promo purchase amount in full within the promotional period. If you do not, interest will be charged on the promo purchase from the purchase date. Depending on purchase amount, promotion length and payment allocation, the required minimum monthly payments may or may not pay off the purchase by the end of the promotional period. Regular account terms apply to non-promotional purchases and, after the promotion ends, to the promotional balance. For new accounts: The Purchase APR is 29.99%; Minimum Interest Charge is $2. Existing cardholders should see their credit card agreement for their applicable terms. Subject to credit approval.

More ways to pay:

Lease-to-own with Progressive Leasing. Learn more

Earn 12,800 reward points

($128.00 in credit)

Earn 12,800 reward pts.

($128.00 in credit)

In Stock & Ready to Ship

Most orders placed before 3 p.m. ET ship same day (except weekends and holidays).

Free Shipping
Top Rated
Flexible Financing
Lowest Price

Gold Coverage Protection

60 MONTH

+ $402.99

36-MONTH

+ $249.99

24-MONTH

+ $179.99

No plan Selected

Protect your gear

Open Box:

From $1,407.99

Overview

Eight-voice desktop polyphonic synthesizer with three New Oxford Oscillators for each voice.

Peak is an 8-voice desktop polyphonic synthesizer with three New Oxford Oscillators for each voice. The oscillators sound completely analog by being high-quality NCOs (Numerically-Controlled OscillatShow More

Specs

Peak 8-Voice Desktop Synth Specifications:

Product Hardware Specifications

42 Control knobs
8 35 mm Sliders
1 Volume knob
2 Data encoders
30 Function buttons (not lit)
16 Function buttons (lit)
2 Animate buttons plus hold button
90 Indicator LEDs
OLED display
USB socket for system/MIDI comms only (no bus-power)
MIDI In/Out/Thru
2 1/4" jack socket for continuous or switched pedals
3.5 mm jack socket for CV in
1/4" jack sockets for left and right outputs
1/4" jack socket for headphone output
Metal chassis with American walnut wooden end cheeks

Synth Engine

8 note polyphony (dependent on voices used per note)
Mono-Timbral
5 Voice Modes: Mono, MonoLG, Mono2, Poly, Poly2

Per Voice

3 oscillators
1 noise generator
1 ring modulator
2 LFOs
1 Amp envelope and 2 mod envelopes
1 Filter
Sine, tri, sawtooth, square/pulse, plus 17 wavetables of 5 waveforms per row

Filter

1x State variable OTA filter per voice
12/24dB slope
Low-pass/band-pass/high-pass
Pre-filter overdrive
Post-filter distortion

Modulation

16 modulation slots per patch
Each slot has 2 sources to 1 destination

Mod sources (17)

Direct (depth)
Modulation wheel
Aftertouch (polyphonic and channel AT)
Expression pedal 1
Expression pedal 2
Keyboard velocity
LFO1 positive
LFO1 bi-polar
LFO2 positive
LFO2 bi-polar
Amp envelope
Mod envelope 1
Mod envelope 2
Animate 1
Animate 2
CV mod input bi-polar

Mod destinations (37)

Oscillator 1-3 frequency, v-sync level, shape amount and level
Noise source level
Ring modulator output level
Overal synth output level
Filter drive, distortion, cut-off frequency and resonance
LFO 1 and 2 frequency
Amp env/mod env 1/mod env 2 attack, decay and release
FM Osc 1 -> osc 2, osc 2 -> osc 3, osc 3 -> osc 1 and noise -> osc 1
Osc 3 -> filter cutoff frequency
Noise -> filter cutoff frequency

Effects

Analog distortion
Chorus: 3 types
Reverb: 3 types
Delay with 16 types of delay sync, LP and HP damping, slew and stereo

Misc

Arpeggiator with key latch: 33 patterns, Glide
Patch storage: Up to 512 on hardware (256 factory patches)
All knobs (excl. volume), sliders and most buttons transmit and receive MIDI cc commands for external control and mapping

Software Compatibility

USB-MIDI class-compliant device, Ableton Live Lite 9 is included
Maximum power consumption 12V DC 1A

Dimensions

9.17" x 18.27" x 2.78"
