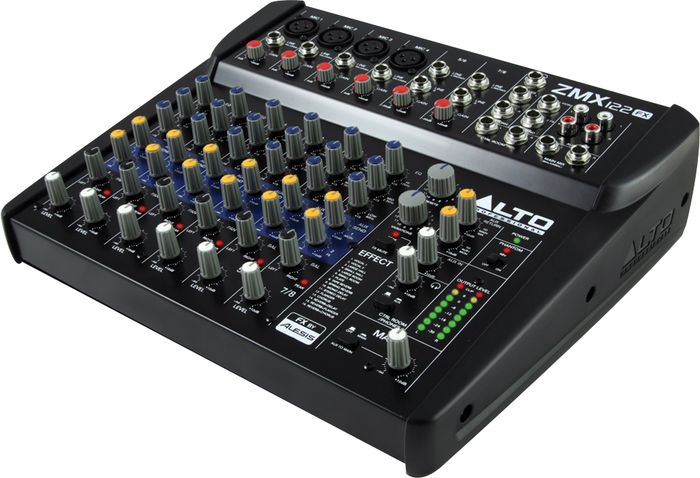

Zephyr Series ZMX122FX 8-Channel Compact Mixer with Effects

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

Compact, good-sounding, small format mixer with quality effects on board.

Regardless of the application, give your mix a professional edge with 256 onboard 24-bit DSP effects designed in partnership with Alesis. Choose from room and space delays, small and large hall acousShow More
Specs

Zephyr Series ZMX122FX 8-Channel Compact Mixer with Effects Specifications:

  • Input Channels: Mono channels (Ch. 1 - 4)
  • Microphone Input: Electronically balanced, discrete input configuration
  • Frequency Response: 20Hz to 22kHz, +/-1 dB
  • Distortion (THD&N): ‰¦0.005% At +4 dBu, 1kHz
  • Gain range: 0 dB to 50 dB (Mic)
  • Maximum Voltage Gain: 70 dB Ch. Mic input †’ Main Mix out & Tape out, 80 dB Ch. Mic input †’ Control Room & Phones, 60 dB Ch. Mic input †’ Aux send
  • SNR (Signal to Noise Rate ): ‰§110 dBu
  • Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48V - with switch control
  • Line Input: Electronically Balanced
  • Frequency Response: 20Hz to 22kHz, +/-1 dB
  • Distortion (THD&N): ‰¦0.005% at + 4 dBu, 1kHz
  • Gain Range: 15 dBu to 35 dBu
  • Stereo Channels: (Ch. 5 - 8)
  • Line Input: Electronically Balanced
  • SNR (Signal to Noise Ratio): ‰§110 dBu
  • Frequency Response: 20Hz to 22kHz, +/-1 dB
  • Distortion (THD&N): ‰¦0.005% at +4 dBu, 1kHz
  • Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line †’ Main Mix out
  • Maximum Voltage Gain: 20 dB FX Return †’ Main Mix out, 20 dB RCA Tape input †’ Main Mix out
  • Impedance
  • Microphone Input: 3.9 kOhms
  • All Other Inputs: 10 kOhms or greater
  • Tape Out: 1 kOhms
  • All Other Outputs: 120 Ohms
  • Equalization
  • Mono Channels: High ±15 dB @ 12kHz, Mid ±15 dB @ 2.5kHz, Low ±15 dB @ 80Hz
  • Stereo Channels: High ±15 dB @ 12kHz, Mid ±15 dB @ 2.5kHz, Low ±15 dB @ 80Hz
  • Alesis DSP Section
  • A/D And D/A Converters: 24-bit
  • DSP Resolution: 24-bit
  • Type of effects: Hall, Room, Vocal & Plate Reverbs Mono & Stereo Delay (max delay time 650 ms) Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus, Reverb+Flanger combinations
  • Presets: 256
  • Controls: 16 x 16-position preset selector
  • Crosstalk: Adjacent Input ‰¦-80 dB @ 1KHz (Ch. 1-6) , Input to Output ‰¦-75 dB @ 1KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right)
  • Main Mix Section
  • Tape, Aux, Phones Output
  • Output level: 0 dBu Unbalanced, 1/4" Jacks, Max out +22 dBu Unbalanced, 1/4" jacks
  • Noise (Bus noise): ‰¦-90 dB @ 20 Hz 22KHz (channel & Main level at 0 dB, other at minimum, DSP mute)
  • Power supply: 18 V, 1500 mA
  • Rated power consumption: 27 W
  • Dimensions (WxLxH): 256mm x 250mm x 72mm
  • Weight: 5.07 lb
