Design LED Par Zoom

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

Smooth, flicker-free color mixing with the ability to zoom from 7 to 49 degrees.

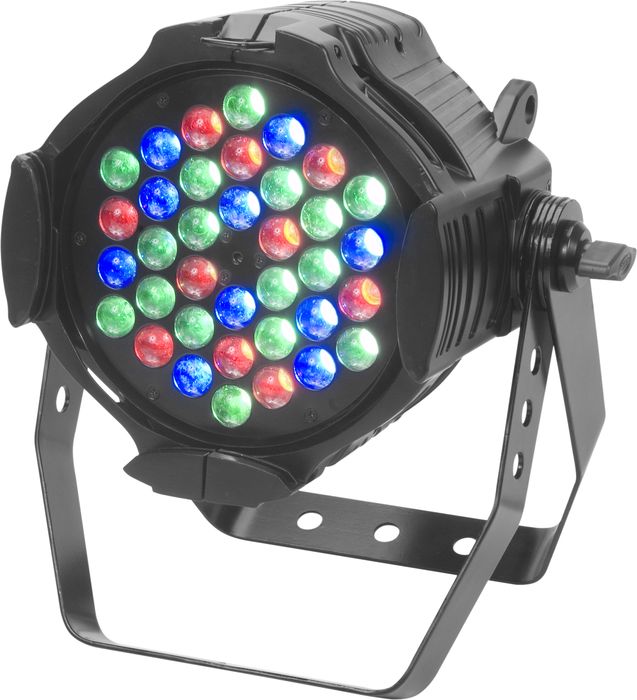

Elation's Design LED Par Zoom mixes 36 - 3W LEDs (10 Red, 10 Blue, and 16 Green) with a 7 to 49 zoom for a bright, easy-to-use Par light that can be used on the ground or up in the air thanks to its split yoke up-light bracket. It has manual mode with onboard control, master/slave mode, and sound active mode, as well as 8 built-in chases with fade, speed, strobe, and built-in color macros. The Design LED Par Zoom has a die-cast aluminum chassis with gel frame holder and included gel frame.

Features

  • Motorized Zoom LED Pro Par
  • 36 (10 Red, 10 Blue, & 16 Green) x 3W RGB LEDs
  • 7 to 49deg; motorized zoom
  • 4-digit LED display-Flip Option
  • Manual mode on-board control
  • Master/slave mode
  • 8 built-in chases with fade, speed, strobe
  • Sound active mode
  • Built-in color macros
  • Smooth, flicker-free color mixing
  • Die-cast aluminum with gel frame holder
  • Gel frame included
  • Rugged design
  • Black
  • Split Yoke up-light bracket

Add this to your lighting rig! Order today!

Specs

Design LED Par Zoom Specifications:

  • Control: USITT DMX-512
  • DMX Channels: 8
  • 3-Pin XLR In/Out
  • Strobe: Strobe effect (1-18 flashes per second)
  • Power supply: 120-240V, 50/60Hz
  • Power consumption: 60W
  • Ballast: Electronic power supply
  • Cooling: Fan cooled (High-Auto setting)
  • Cable/Plug Type: IEC Edison PPG 120v
  • Approvals: CE Approved
  • IP Rating: IP44
  • Rigging: Split yoke bracket safety cable eye
  • Lamps: 10 Red, 16 Green, 10 Blue 3W Leds
  • Lamp Life: 50,000 hrs. life
  • Lux: 6600 / 613 fc @ 2.5M or 8'
  • Dimensions: (LxWxH): 13" x 13.3" x 20"
  • Weight: 15.4 lb.
