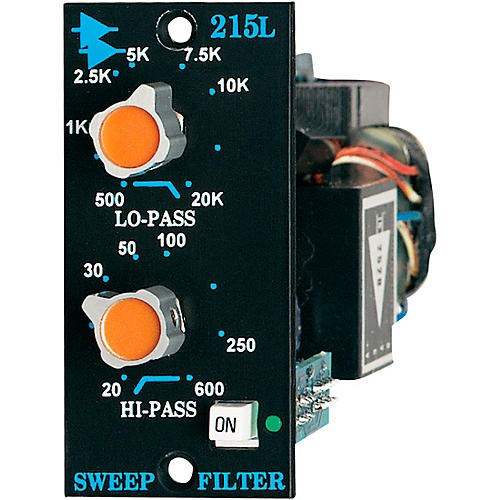

API 215L 200 Series Discrete HP/LP Sweep Filter

Q&A SKU #L83895000000000
695.0 $695.00
Or
14.48 $14.48/mo. with 48 months financing*
Limited time Learn more
More ways to pay:
Lease-to-own with Progressive Leasing. Learn more
Loyalty Points Icon
Loyalty Points Icon
Earn 5,560 reward points
($55.60 in credit)
Earn 5,560 reward pts.
($55.60 in credit)
Inventory Msg Check Mark Inventory Msg Exclamation In Checkout Promo Inventory Msg Download Icon
Order Now!
This item is backordered but is available to reserve now. You will not be charged until the item ships.
  • Free Shipping
  • Flexible Financing
  • Lowest Price
Product Warranties Icon Product Warranties Icon

Gold Coverage Protection

Protect your gear

Chevron Right Icon
Overview

A versatile sweep filter with great sonic character.

The API 215L is a unique passive, sweepable filter, designed specifically to contour the sound to preserve the natural tone of the signal. Its extreme flexibility, repeatable settings and superb sound make it ideal for all studio, live sound and broadcast applications.

The 215L design is a passive low-pass filter with a slope of only 6dB per octave, and a passive dual high-pass filter with a slope of 12dB per octave. The filters are isolated from each other with the same discrete transistor buffer used in the famous 550 series equalizers. This minimizes interaction between the filters, as well as providing a low impedance source for the filter following the buffer.

The input section is a balanced circuit using the API 2510 all discrete op-amp, minimizing the loading effect on any device plugged into it. The output stage is a transformer balanced output, driven by the all discrete API 2520 op-amp.

The filters are both continuously adjustable, with a range from 20Hz to 20kHz in two bands. The low-pass filter has a range from 500Hz to 20kHz, and the high-pass filter has a range from 20Hz to 600Hz. This covers a broad range of frequencies throughout the entire audio spectrum.

Because of the subtle nature of the 215L filter, it finds a home with uses like rolling off the low end of a hi-hat, where a natural sound is desired, not the usual "phase-shifter" sound of a 18 to 24dB per octave filter found on most consoles. It can also be used to thin out room mics, without the complete loss of low end which again usually results from steep filter circuits.

The 215L can be used in the Legacy, Legacy Plus or Vision Series consoles, or in the L200 Rack. The 215L Filter makes use of the 2520 and 2510 op-amps and therefore exhibits the reliability, long life and uniformity which are characteristic of API products.

Features

  • Wide-range 6dB per octave LO-PASS control
  • Wide-range 12dB per octave HI-PASS control
  • Balanced input stage
  • Passive filter design for smooth tone
  • Unity gain throughout
  • Hardwired BYPASS switch
  • Transformer coupled output to +28dBu
  • All-discrete design

Order the 215L 200 Series Discrete HP/LP Sweep Filter today.

Specs

215L 200 Series Discrete HP/LP Sweep Filter Specifications:

General
  • Number of bands: 2
  • Filter type: Passive sweepable shelf
  • Low pass: 500Hz to 20kHz
  • High pass: 20Hz to 600Hz
  • Input impedance: >20 kohms, balanced
  • Output impedance: 85 ohms, Transformer coupled, Balanced
  • Nominal levels: –15dBu to +15dBu
  • Clipping level: +28dBu
  • Frequency response: 0, –.3, 30 to 20kHz
  • Noise: 98dB below +10dBm output, unweighted. 20Hz–20 kHz
  • Distortion (THD): .02% (+4dB @ 2kHz)
  • Connectors: 0.100 spaced ELCO
  • Power Consumption: ±16V DC, 60mA max at +24dBu out
Product Dimensions and Weight
  • Dimensions: 1.25" x 2.65" x 6.75"
  • Weight: 0.51 lb.
