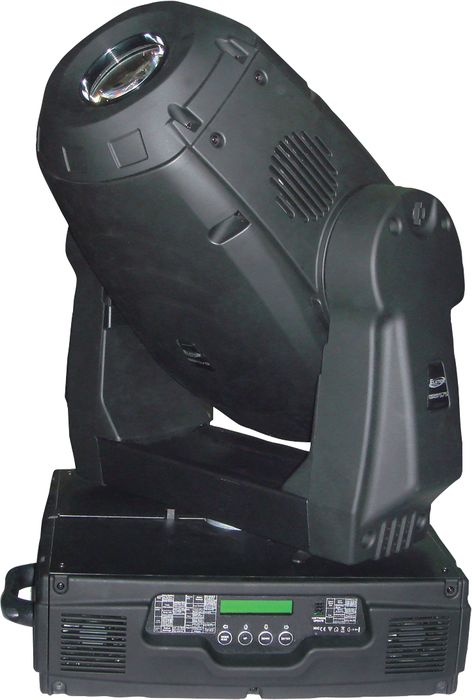

Design Spot 575E DMX Moving Head Fixture

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

The Design Spot 575E DMX is an extremely bright 575-watt discharge intelligent moving head spot & wash In one, featuring 7 dichroic colors plus white, 2 gobo wheels (12 total gobos, 6 metal, 6 glass), and 1 rotating animation wheel. The light includes 24 DMX channels with remote DMX addressing and 32-character LCD display. The Design Spot 575E DMX includes incredible features for setting shutter/dimmer, iris, frost, prism, focus, zoom, pan and tilt making it a highly versatile effect for clubs and other venues. High quality Philips lamp, omega brackets for rigging.

Features

CONTROL FEATURES
RDMX - Remote DMX Addressing
USITT DMX-512 (16-bit resoultion)
24 DMX Channels
32-Character LCD display
On board menu settings
3-pin XLR serial input/output
Sound active mode
OPTICAL SYSTEM
High output luminous-parabolic dichroic reflector
15 to 30 linear Zoom
All lenses are anti-reflection coated
29,700 lux @ 2.5M
COLORS
Full Color mixing with CMY flag system
8 Dichroic filters, 7 color, UV + White
Continuous, variable speed, color scrolling in both directions (rainbow effect)
More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
2 gobo wheels, 12 total gobos, 6 metal, 6 glass
6 interchangeable, indexable, rotating gobos plus open
6 interchangeable, indexable, rotating gobos plus open
Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
Gobo Overlay (Gobo Morphing)
ANIMATION
1 rotating animation wheel
SHUTTER/DIMMER
Variable speed strobe effect (1-13) flashes per second
Pre-set variable/random strobe and dimming pulse effect
Dual Flag mechanical dimming system
IRIS
Beam narrow to wide (5% - 100%)
Variable speed iris macros
Small to large and large to small
FROST
Variable Frost Control
Hard edge to soft edge
PRISM
3-facet rotating/Indexing Prism
Both directions at variable speeds
Macro-function for rotating gobos/rotating prism combinations
FOCUS
Motor driven focus from near to far
ZOOM
15 - 30 degree linear Zoom
LAMP
Phillips MSR 575/2 SADE (575W, 8500K, 1500 HRS)
PAN/TILT
Automatic Pan / Tilit position correction
Maximum PAN-movement 630 in 2.0 secs (default) or 540 (user selectable) / 16 bit
Maximum TILT-movement 265 in 1.5 secs / 16 bit
Vector Mode with blackout
RIGGING
2 X 1/4 Turn omega brackets
POWER SUPPLY
Electronic Ballast
Voltage 90- 240vAC 50/60Hz
Power Consumption: 600W (120V = 7A)
OPTIONAL DUAL ROAD CASE
DRC-700

High end lighting means high end shows. Call or click today to order.

Specs

Design Spot 575E DMX Moving Head Fixture Specifications:

DIMENSIONS & WEIGHT
18.7 x 14.37 x 24.4 inches
67 lbs.
POWER SUPPLY
Electronic Ballast
Voltage 90- 240vAC 50/60Hz
Power Consumption: 600W (120V = 7A)
