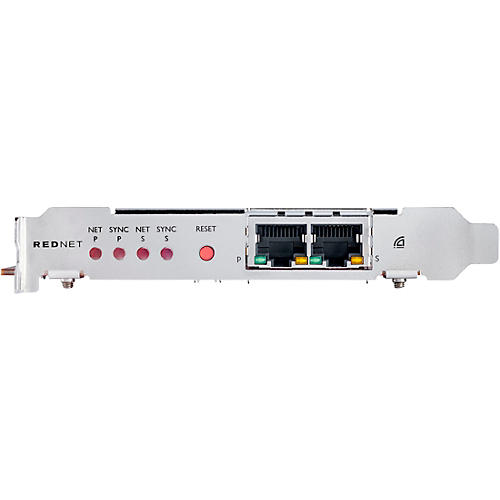

Focusrite RedNet PCIeNX Dedicated Dante Audio Interface Card Windows/Mac

Q&A SKU #M04685000000000
1599.99 $1,599.99
Or
33.34 $33.34/mo. with 48 months financing*
Limited time Learn more
More ways to pay:
Lease-to-own with Progressive Leasing. Learn more
Loyalty Points Icon
Loyalty Points Icon
Earn 12,800 reward points
($128.00 in credit)
Earn 12,800 reward pts.
($128.00 in credit)
Inventory Msg Check Mark Inventory Msg Exclamation In Checkout Promo Inventory Msg Download Icon
In Stock & Ready to Ship
Most orders placed before 3 p.m. ET ship same day (except weekends and holidays).
  • Free Shipping
  • Flexible Financing
  • Lowest Price
Product Warranties Icon Product Warranties Icon

Gold Coverage Protection

Protect your gear

Chevron Right Icon
Overview

RedNet PCIeNX delivers 128x128 channels of 24-bit/192 kHz audio with ultra-low latency.

Perfect for immersive formats like Dolby Atmos and any performance-critical high-channel-count Dante applications, the Focusrite RedNet PCIeNX delivers 128x128 audio channels (up to 192kHz) with ultra-low latency.
Compatible with PC and Mac (including the latest Apple Silicon), RedNet PCIeNX seamlessly integrates with your existing hardware and accelerates any Dante workflow.

For post-production professionals working in Dolby Atmos, RedNet PCIeNX offers the ability to integrate high-channel-count Dante audio seamlessly with the Dolby Renderer. For commercial recording studios and music production facilities, RedNet PCIeNX delivers performance, flexibility, and scalability, with 128x128 channels of uncompressed, high-resolution audio at ultra-low latency. Two Ethernet RJ-45 connections offer both switched and redundant mode, giving connectivity flexibility as well as the option to have a secondary network in mission-critical situations.

RedNet PCIeNX also supports AES67, Dante Domain Manager, and is SMPTE ST 2110 compliant, which makes it perfect for broadcast deployment. The integrated network interface simplifies installation and connectivity, allowing a single-cable connection for audio and network control. RedNet PCIeNX integrates seamlessly with RedNet Control, which provides a single application for control and monitoring of all RedNet devices on the network.

Features

  • 128x128 channels (24-bit/192kHz) with ultra-low round-trip latency
  • Dual Ethernet RJ-45 connections allow for both switched and redundant mode
  • Broadcast-ready with support for the latest AoIP standards
  • Compatible with Windows or Mac (Intel and Apple Silicon supported)
  • Can be easily installed in a PCIe slot or Thunderbolt chassis
  • Integrated network interface

Order today for seamless integration.

Specs

RedNet PCIeNX Dedicated Dante Audio Interface Card Windows/Mac Specifications:

Simultaneous Inputs & Outputs
  • 128x128 (all sample rates)
Digital Performance
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
Dante Connectivity
  • 2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
Driver Compatibility
  • Multi-client ASIO and WDM (Windows)
  • CoreAudio (Mac)
Front Panel
  • 2x Network Active LED indicators (Primary/Secondary)
  • 2x Network Lock LED indicators (Primary/Secondary)
  • 1x Factory Reset button
Card Size
  • Full Height, Half Width
Power
  • Powered over PCIe
Heat Performance
  • Max internal case/chassis operating temperature: 50 degrees Celsius/122 degrees Fahrenheit
System Requirements
  • Computer: Apple Mac/Windows system running supported OS
  • An empty 4x Lane PCIe 2.1 compatible slot is required (on-motherboard or via Thunderbolt to PCIe expansion chassis)
  • Other: Internet connection for downloading and installing software and driver
