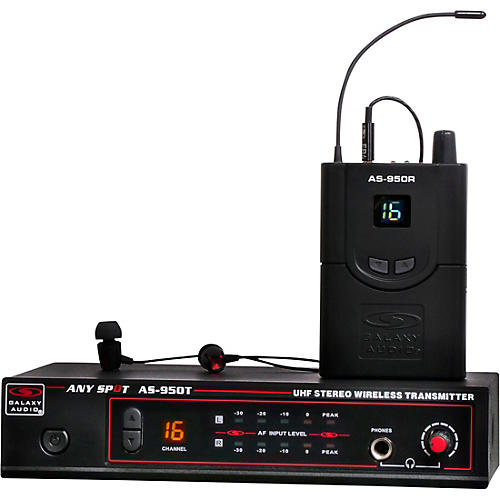

AS-950 Wireless In-Ear Monitor (Band N)

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

Affordable in-ear monitoring system.

The AS-950 Wireless In-Ear Monitor (Band N) system offers reliable quality and exceptional value. The receiver features a 50mW x 2 output with RF and stereo indicator. The transmitter features L/R leShow More
Specs

AS-950 Wireless In-Ear Monitor (Band N) Specifications:

AS-950 SYSTEM:
  • Band: UHF
  • Frequencies Range: CODE N 518MHz–542MHz
  • Frequencies: 16
  • Transmitter Output Level: 10 mW
  • Operating Range: Under Typical Conditions 200' (61m)
  • Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics
  • Audio Frequency Response: +/-3dB 50Hz–15kHz
  • Total Harmonic Distortion: <1% @ 1kHz
  • Signal to Noise: >80dBA
  • Maximum Deviation Range: +/-40kHz
  • Dynamic Range: >90dB A-weighted
  • Operating Temperature: Range 14º F to 122º F (-10º C to 50º C)
  • Note: battery characteristics may limit this range
AS-950T TRANSMITTER:
  • Main Frame Size: EIA STANDARD 1/2 U
  • Modulation Mode: FM Stereo Modulation
  • RF Output: 10 mW
  • Max Audio Input Level: +6dBV
  • Gain Adjustment Range: 40dB
  • Controls: Headphone Volume, Channel Up/Down, and Power Button
  • Indicators: LCD Display, Input Level
  • Audio Input: Line Level X 2, XLR / 1/4" Combo Jack
  • XLR Input: Impedance balanced
  • Pin 1: Ground (cable shield)
  • Pin 2: Audio +
  • Pin 3: No Audio -
  • Transmitter Antenna: Detachable 1/2 Wave BNC Antenna
  • Dimensions (HxWxD): 1.73" x 8.34" x 3.77" (44 x 212 x 96 mm)
  • Weight: 19.75 oz. (560 g)
  • Power Requirements: 12-18 V DC at 300 mA, supplied by external power supply
AS-950R RECEIVER:
  • Audio Output Level: 50 mW x 2 Earphone Out with Volume Control
  • Sensitivity: -94dBm for 30dB
  • Stereo Separation: 40dB (at 1kHz)
  • Output Connector: 1/8" (3.5 mm) Stereo Earphone Connector
  • Controls: Volume, Channel Up/Down
  • Indicators: LCD Display, Stereo LED, RF LED
  • Dimensions (HxWxD): 3.54" x 2.51" x .9" (90 x 64 x 23 mm)
  • Weight: 3.35 oz. (95 g) without batteries
  • Power Requirements: 2 "AA" size alkaline or rechargeable batteries
  • Battery Life: About 12 hours (alkaline)
