Overview

Affordable guitar wireless system from Galaxy Audio.

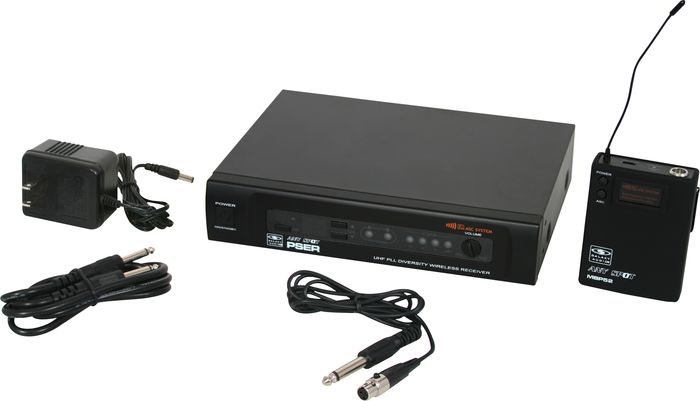

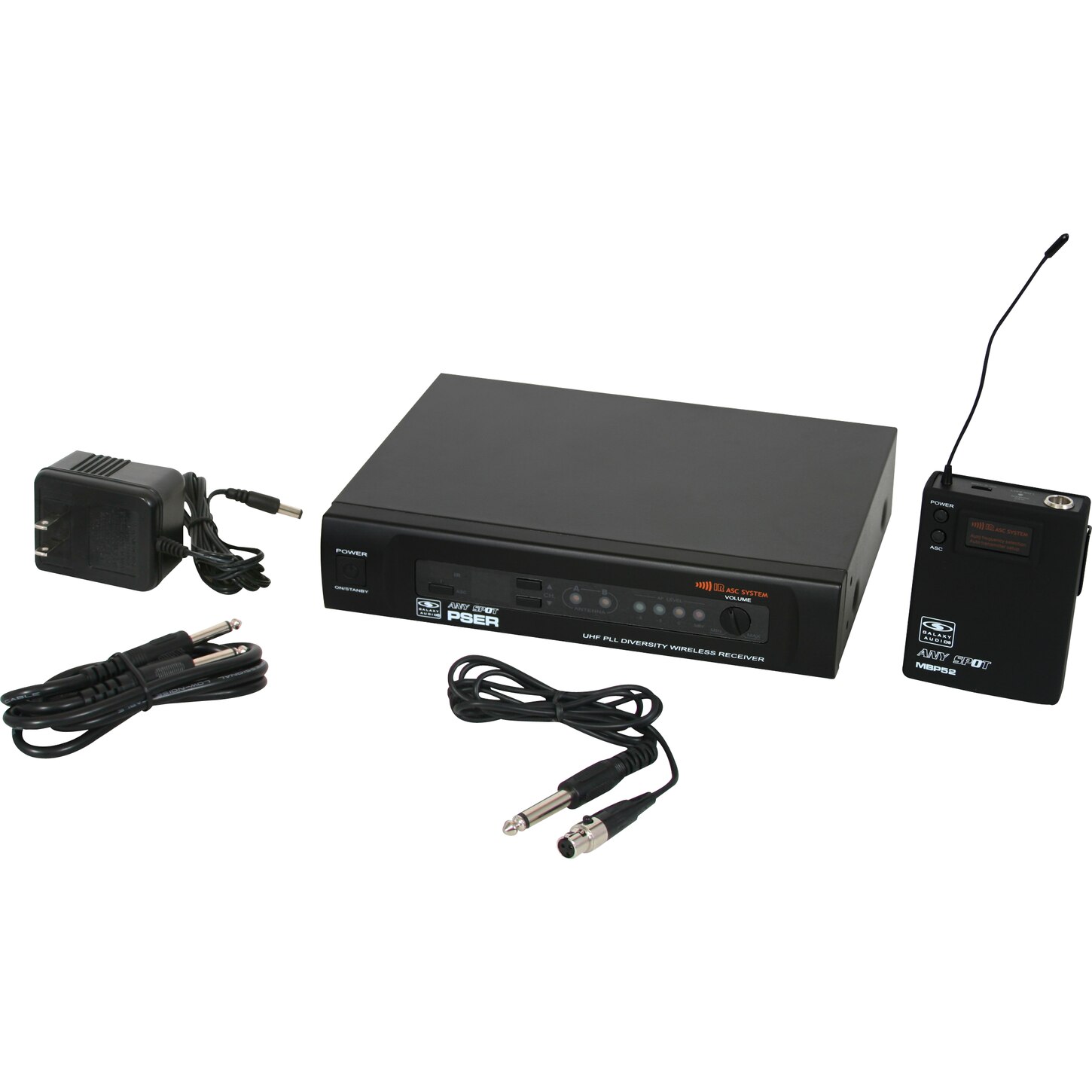

The PSE Guitar System by Galaxy Audio is a UHF receiver with 16 selectable channels along with a belt-pack transmitter designed for guitar. The receiver features a volume control, channel display and IR Sync. The PSE has an XLR and a 1/4" output and squelch adjustment.

This unit comes with a 1/4" cable that plugs into your guitar, and that terminates on the other side in a mini XLR jack that plugs into a belt-pack transmitter. The belt pack then transmits the signal to a half-rack space diversity receiver, which in turn feeds your amplifier. There is little chance of dropout with a two antenna system, and with 16 selectable frequencies, you can be sure of not confusing your signal with other wireless devices being used on the same stage.

This works on Frequency D: 584-607mHz

Features

Frequency D:
  • 584–607MHz
Receiver (PSER)
  • Output volume control
  • AF level indicator
  • IR Sync
  • Squelch adjustment
  • XLR/1/4" outputs
Body Pack (MBP52)
  • IR Sync
  • 2 AA batteries
  • Mic/0/–10dB
  • 3-position switch
  • Low-battery indicator

Order now. It is a small price to pay for freedom.

Specs

PSE Guitar System, Frequency D 584-607mHz Specifications:

  • Audio Output Level: (+/-30kHz deviation, 1kHz tone) XLR connector (into 600 ohms load) –12dBV 1/4" connector (into 3kOhms load) –18dBV
  • Output Impedance: XLR connector 200 ohms 1/4" connector 1kohms
  • XLR output: Impedance balanced
  • Pin1L: Ground (cable shield)
  • Pin2: Audio
  • Pin3: No Audio
  • Sensitivity: -93dBm for 30dB
  • Image Rejection: >90dB
  • Dimensions: 8.3" x 1.7" x 6.3"
  • Weight: 31 oz.
  • Power Requirements: 12-18VDC at 400mA, supplied by external power supply
