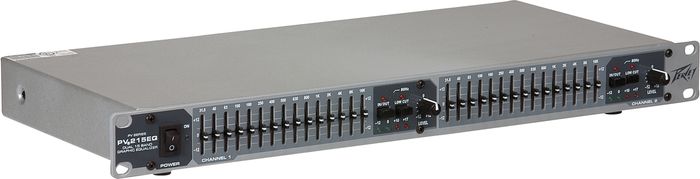

PV 215EQ Graphic Equalizer

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

A simple, effective equalization solution in a single rackspace.

The rack mountable PV 215EQ is a dual 15-band 1/3-octave graphic equalizer incorporating Peavey's legendary low-noise, low-distortion design. Ruggedly constructed, the PV 215EQ lets you select between 6 dB or 12 dB cut or boost over frequencies ranging from 25Hz to 16kHz. Low cut filter switch with status LED helps remove rumble from open mics. Other features include balanced inputs and outputs and bypass switches.

Features

  • 1 RU dual 15-band stereo
  • Switchable 12-band or 6 dB boost/cut range
  • 80 Hz 24 dB low cut filter
  • XLR balanced I/O
  • Output level LEDs
  • Bypass switch with status LED
  • 45 mm center-detent control sliders
Specs

PV 215EQ Graphic Equalizer Specifications:

  • Channels: 2
  • Connectors: XLR balanced inputs and outputs
  • Bands: 15 per channel
  • Frequency Centers: 31.5 Hz, 40 Hz, 63 Hz, 100 Hz, 160 Hz, 250 Hz, 400 Hz, 500 Hz, 630 Hz, 800 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz
  • Input Impedance: 20k ohms
  • Output Impedance: 1.5k ohms
  • Maximum Output Level: 11 VAC
  • Level Control: +/- 12 dB
  • Signal to Noise: 90 dB
  • Distortion: 0.03%
  • Power: 120
  • Power Consumption: 15 watts
  • Dimensions: 19" W x 1.75" H x 8.75" D (Unpacked)
  • 20.25" W x 4.375" H x 10.5" D (Packed)
  • Weight: 7.5 lbs. (Packed)
  • 6 lbs. (Unpacked)
