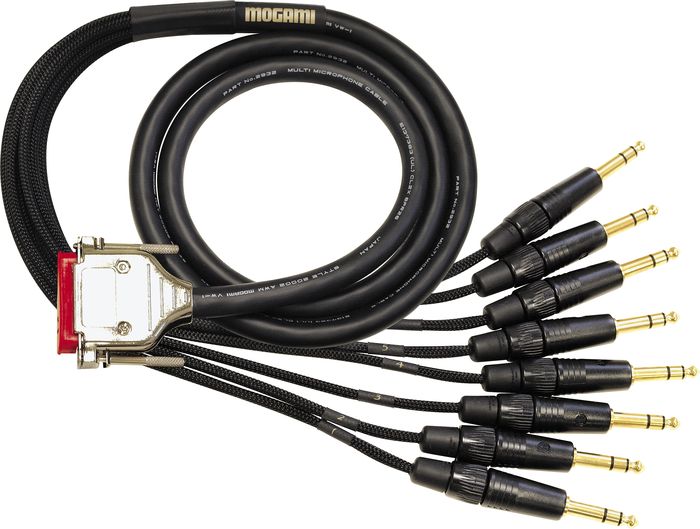

Mogami Gold 8 Channel DB25-TRS Snake Cable 10 ft.

Play Video

Mogami Gold 8 Channel DB25-TRS Snake Cable 10 ft.

Q&A SKU #483345000154000

$28995

6-Month Special Financing

Limited time Learn more

Special Financing

Applying is fast and easy!
Status and credit amount on validation!
Instant decisions so you can make your purchase now!

*Qualifying purchase (excluding gift certificates) must be one receipt. 6 month special financing excludes open box gear and cannot be combined with promotional coupons or manual discounts. No interest will be charged on the promo purchase if you pay the promo purchase amount in full within the promotional period. If you do not, interest will be charged on the promo purchase from the purchase date. Depending on purchase amount, promotion length and payment allocation, the required minimum monthly payments may or may not pay off the purchase by the end of the promotional period. Regular account terms apply to non-promotional purchases and, after the promotion ends, to the promotional balance. For new accounts: The Purchase APR is 29.99%; Minimum Interest Charge is $2. Existing cardholders should see their credit card agreement for their applicable terms. Subject to credit approval.

More ways to pay:

Lease-to-own with Progressive Leasing. Learn more

Earn 2,320 reward points

($23.20 in credit)

Earn 2,320 reward pts.

($23.20 in credit)

In Stock & Ready to Ship

Most orders placed before 3 p.m. ET ship same day (except weekends and holidays).

Style: 10 ft.

Free Shipping
Flexible Financing
Lowest Price

Overview

Incredible Cable.

Mogami Gold multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, superflexible and easy to use.

Features

Individually twisted shielded pairs.
XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.
Rugged and flexible construction that is easy to handle, even at temperatures down to -20 deg C (-4 deg F).
Easy Mogami cable identification system:
Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped.
Outer jackets of each pair are color coded by standard resistor color code, allowing quick identification of conductor pairs.
Inner conductors are also color coded based on the international standard resistor color code. Each pair is color coded by jacket and conductor color combination.
Each channel has a drain wire and served (spiral) bare copper shield. The drain wires simplify termination and can be crimped by the same size contact as the inner conductor pair.
CL2 rated version available. Conductor size of CL2 rated version is thicker #25AWG so that it is also recommended for rugged application and firm and easier crimp terminal connector wiring as well as NEC fire regulation requirement.

Specs

Gold 8 Channel DB25-TRS Snake Cable Specifications:

Conductor: 30/0.08A (0.15mm sqœ) #26AWG (30…#40AWG)
Insulation: 1.0 XLPE (Cross Linked Polyethylene) (0.039")
Drain Wire: 7/0.18TA (0.18mm sqœ) #25AWG (7…#33AWG)
Served Shield: Approx. 58/0.10A Served (spiral) Shield
Jacket (Covering): 2.8 Flexible PVC (0.110")
Identification: See core number identification table
DC Resistance at 20 deg C: Inner Pair Conductor: 0.13W/m(0.040W/Ft); Shield: 0.031W/m(0.0095W/Ft)
Capacitance at 1kHz, 20 deg C (Partial Capacitance Value) See Figure (1): K0: 130pF/m(40pF/Ft); K1: 12pF/m(3.7pF/Ft)
Inductance: 0.6H/m(0.18H/Ft)
Electrostatic Noise (Hum Pick-up)*: 2.5mV Max.
Electromagnetic Noise at 10kHz*: (Inductance of the toroidal core: 595H): 0.1mV Max.
Microphonics*: Method: Stepping on cable: 50mV Max. at 50kW Load
Voltage Breakdown: Must withstand at DC 500V/15sec.
Insulation Resistance at DC 125V, 20 deg C: 100000 MW … m Minimum
Tensile Strength of one pair (26 deg C, 65% RH): 274N
Emigration: Non-emigrant to ABS resin
Applicable Temperature: -20 deg C +70 deg C(-4 deg F +158 deg F)
Standard: UL13 CL2X 60 deg C / UL 20002 AWM 30V 60 deg C VW-1
Conductor: 7/0.18A (0.178mmœ) #25AWG (7…#33AWG)
Insulation: 1.05 XLPE (Cross Linked Polyethylene) (0.0413")
Drain Wire: 7/0.18A (Exactly same as conductor)
Shield: Approx. 58/0.10A Served (spiral) Shield
Jacket (Covering): 2.8 Flexible PVC (0.110")
Identification: See core number identification table
DC Resistance at 20 deg C: Inner Pair Conductor: 0.11W/m(0.0336W/Ft)
Shield: 0.031W/m(0.0095W/Ft)
Capacitance at 1kHz, 20 deg C (Partial Capacitance Value) See Figure (2): K0: 140pF/m(42.7pF/Ft)
K1: 12pF/m(3.7pF/Ft)
Inductance: 0.6H/m(0.18H/Ft)
Electrostatic Noise (Hum Pick-up)*: 2.5mV Max.
Electromagnetic Noise at 10kHz*
(Inductance of the toroidal core: 595H): 0.1mV Max.
Microphonics* Method: Stepping on cable: 50mV Max. at 50kW Load
Voltage Breakdown: Must withstand at DC 500V/15sec.
Insulation Resistance at DC 125V, 20 deg C: 100000 MW … m Minimum
Tensile Strength of one pair (26 deg C, 65% RH): 274N
Emigration: Non-emigrant to ABS resin
Applicable Temperature: -20 deg C +70 deg C(-4 deg F +158 deg F)
Standard: UL13 CL2 60 deg C
